pfm Rotary 3005 E Semi-Electronic Microtome

pfm Rotary 3005 E Semi-Electronic Microtome

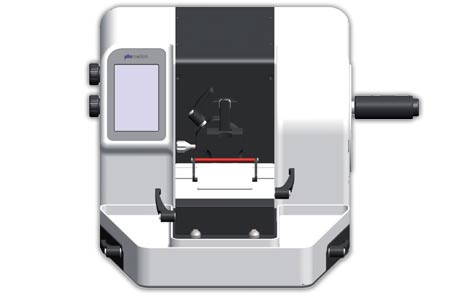

The pfm Rotary 3005 E is a modern, newly designed electronic rotary microtome for all paraffin work in routine practice, research and industry.


  • Ergonomic Design
  • Backlash- and maintenance-free horizontal and vertical cross-roller bearing system
  • Smooth-running handwheel
  • Handwheel locking system in each position
  • Quick change system for object clamps
  • Simple object orientation
  • All electronic settings and functions are operated by touch screen
  • Retraction which can be turned off
  • Memory function
  • Section counter
  • Finger guard
  • Anodised surface, easy to clean

Technical Data

  • Section thickness: 0.5 – 100 µm
  • Settings Range: 0.5 - 10µm in 0.5µm steps/ 50-100µm in 10µm steps
  • Trimming Mode: 1-500µm in one µm steps
  • Remaining feed indication 1mm horitontal: visible and audible
  • Horizontal range: 30mm
  • Vertical Range: 70mm
  • Dimensions (W/D/H): 450 x 530 x 275mm
  • Weight: 38kg


Sku Description Qty
3005E pfm Rotary 3005 E Semi-Electronic Microtome 1
