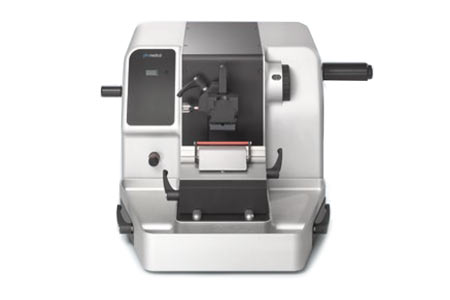

pfm Rotary 3004 M Manual Microtome

The pfm Rotary 3004 M is a modern, newly designed manual rotary microtome for all paraffin work in routine practice, research and industry.

• Ergonomic design
• Backlash- and maintenance-free horizontal and vertical cross-roller bearing system
• Smooth-running handwheel
• Handwheel locking system in each position
• Quick change system for object clamps
• Simple object orientation
• Retraction system
• Trimming device
• Section counter
• Finger guard
• Section waste tray
• Anodised surface, easy to clean

• Coarse feed: manually via coarse feed wheel
• Fine feed: manually via handwheel
• Section thickness: 0.5 - 60 ?m
• Setting range: 0.5 - 10 ?m in 0.5 ?m steps/10 - 20 ?m in 1 ?m steps/20 - 60 ?m in 5 ?m steps
• Object orientation: 10° X/Y/Z
• Retraction: 40 ?m
• Trimming device: Two trimming steps 10 ?m and 20 ?m
• Dimensions (W/D/H): 450 x 530 x 275 mm
• Horizontal range: 30 mm
• Vertical range: 70 mm
• Weight: 38 kg
